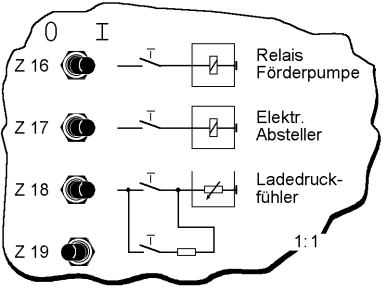

Detail of an error switchboard (available in any
language):
The representation of details from the circuit
diagram is a helpful tool for demonstrating and explaining the
effect of actuators and sensors.

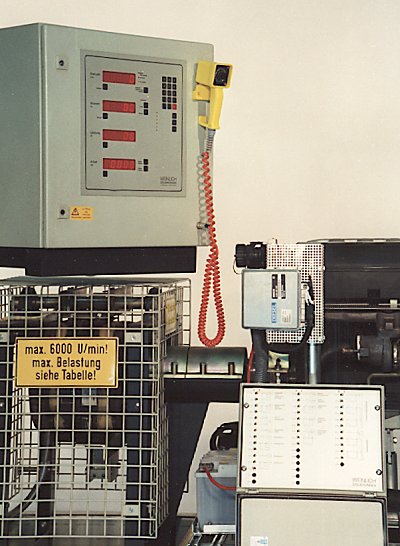

The model-specific error switchboard allows the input
of errors into the control equipment, even in strongly charged
circuits.
Any combination of errors is possible.
Errors can be activated and concealed by closing the
equipment cover for student exercise and examination purposes.
|
