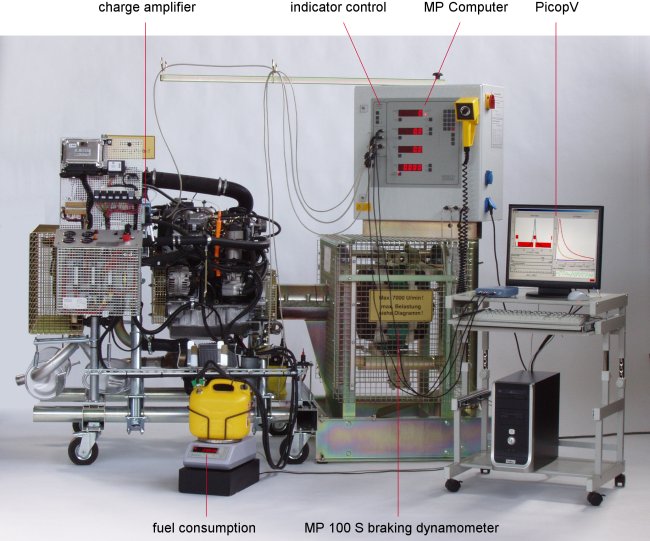

MP 140 Engine Test Bed

Fuel consumption metering and p-V-diagram

PicopV and indicator control are controlling continually the acquisition of cylinder pressure and crankshaft position for individual working cycles.

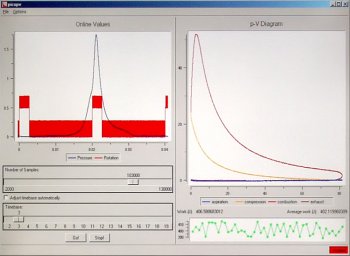

PicopV is forming from these data p-V diagrams, evaluates them and calculates an average of indicated work.

In the background the PC memorizes by DiaW - Diagram for Windows - data from the MP Computer about the state of the engine, the specific fuel consumption, and the duration of acquisition and evaluation of p-V diagrams.
